Haley Brackets

Cable Tray Support Manufacturers + Designers

As a UK manufacturer, we specialise in supplying products to support cable tray + basket installations. As a company, we focus on making products the electrician would want to use. In general, easy to use, comprehensive range, convenient packaging (mostly in multiples of 10 using recyclable materials), quick deliveries with low order values.

Our policy is to manufacture for stock, supply through distributors and electrical wholesalers, using next day delivery. For details of how to obtain our products, or where the can be purchased.

call us on 01782 822602. Alternatively, email us at — sales@haleyproducts.co.uk.

Product Range

Scroll down to see products. Click on the button or image to go to the relevant pages.

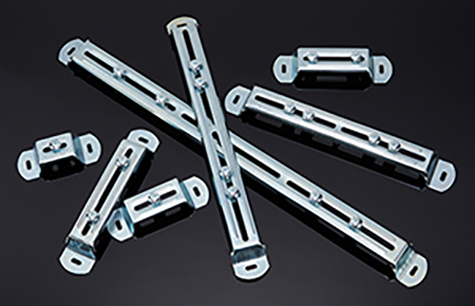

Stand-off Brackets - Top Hat type

Cable Tray Stand-off Brackets(HFX)

Fitted with pre-inserted friction clips that ensures it remains in place, even when it is fixed in a vertical position. You can use the Haley Stand Off Bracket with most makes of cable tray and Basket. Simply slide the spring clip into alignment, and secure the tray with the special mushroom headed screws, supplied in every box, and tighten using a No.2 pozi screwdriver.

Stand-off Brackets
Power fixing brackets

Power Fix Brackets – 42mm height

Power Fix brackets come in two sizes 75mm and 150mm. They offer the option of using standard tray bolts. Alternatively, M6x12 mushroom headed thread forming screws(supplied in each box) can be used.

42mm Power Fix Info

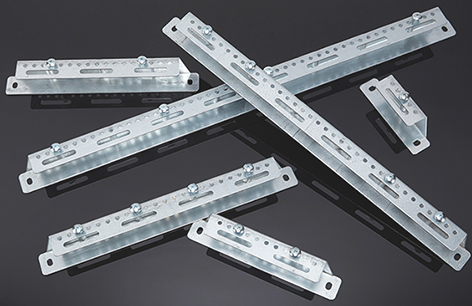

Under floor brackets group photo

UnderFloor Brackets

Strong, versatile UnderFloor brackets are for use on any floor applications. They prevent distortion in the event of being accidently stepped on.

UFCTB Bracket Info

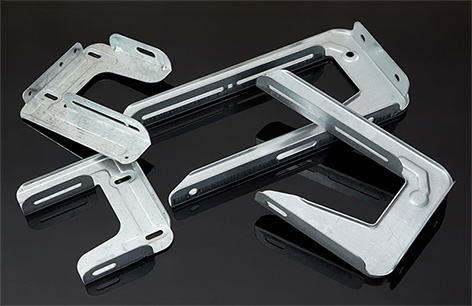

Suspension Brackets

Suspension Brackets

Designed for side loading of cable into tray or basket. This increases productivity as only one suspension rod reduces material costs.

Suspension Brackets

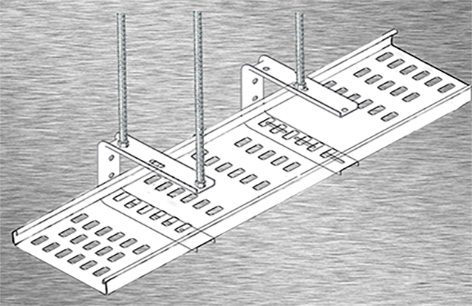

Ceiling brackets with Extended Top Leg

Ceiling Brackets with Extended Top Leg

Designed for lightweight suspension of cable tray and basket.

Designed for side loading of cable into tray or basket.

Able to suspend from either single centre support studding or from two drops of studding forming a trapezium. Either method retains the ability to side load.

Extended Top Leg Brackets

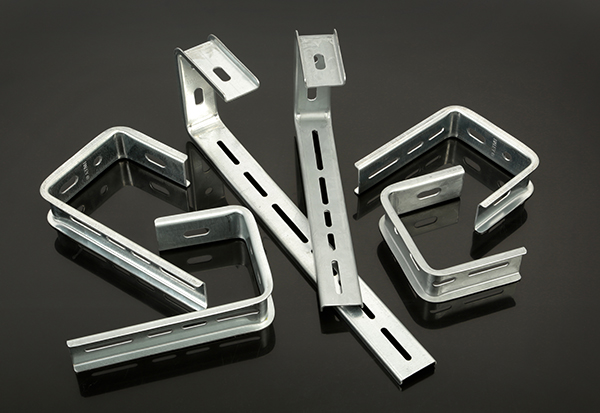

Ceiling brackets for tray

Ceiling Brackets for Tray

Ideal for lightweight support of cable tray and basket parallel to ceilings.

Designed for side loading of cable into tray or basket.

Fixes directly to the ceiling or will fit over strut.

LBC Ceiling Brackets for Tray

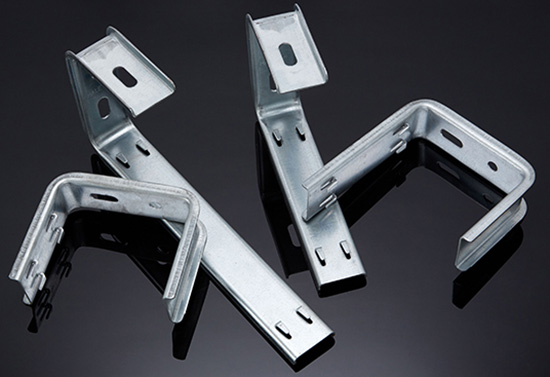

Ceiling brackets for basket

Ideal for lightweight support of cable basket parallel to ceilings.

Designed for side loading of cable into basket.

Fixes directly to the ceiling or will fit over strut.

Ceiling brackets for basket
LBC fixing to timber joists

Backplate for Fixing Ceiling Brackets to Joists

For fixing Ceiling Brackets to wooden joists is made a lot easier with our HBP backplate range.

Backplate is fixed to timber joist using the 5mm woodscrews.

LBC Ceiling Brackets for Tray
Angled Wall Brackets for Tray

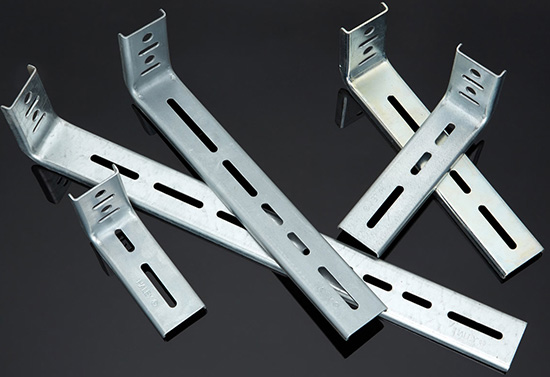

Angled Wall Brackets for Tray

Designed for lightweight support of cable tray and basket perpendicular to vertical walls.
Also designed to fit over 41mm wide channel (strut) using a standard bolt and spring nut (zebedee)

LB Wall Brackets for tray

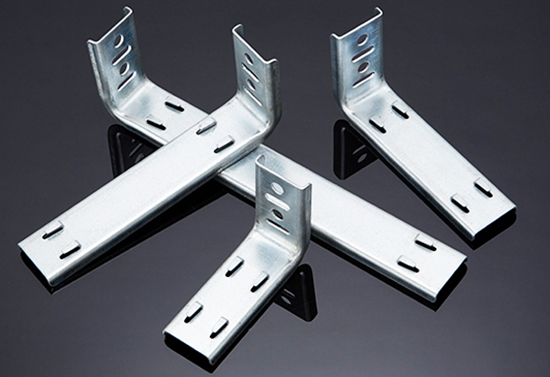

Angled Wall Brackets for Basket

Angled Wall Brackets for Basket

Strong, versatile UnderFloor brackets are for use on any floor applications. They prevent distortion in the event of being accidently stepped on.

LBBA Angled wall brackets for basket Info
Cantilever Wall Bracket – 300mm

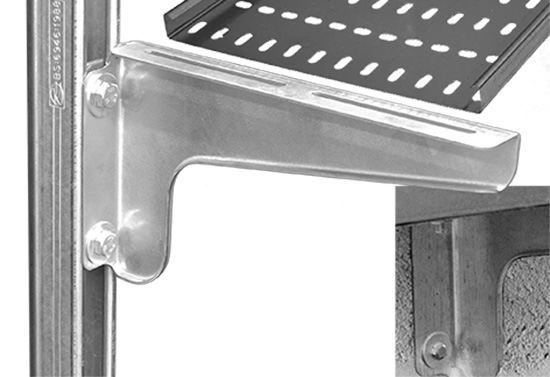

Cantilever Wall Bracket – 300mm

For fixing cable tray and basket to vertical walls.

UFCTB Bracket Info
Centre Support Brackets for Basket

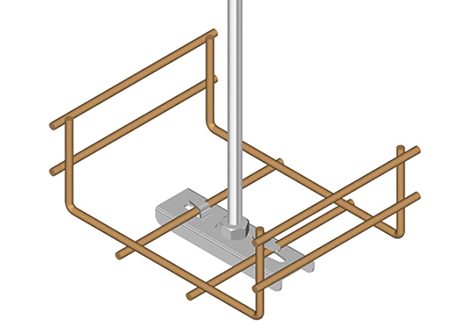

Centre Support Brackets for Basket

Central suspension of cable basket.

Twists into basket for simpler installation.

CSB Brackets for basket
Side Suspension Brackets for Basket

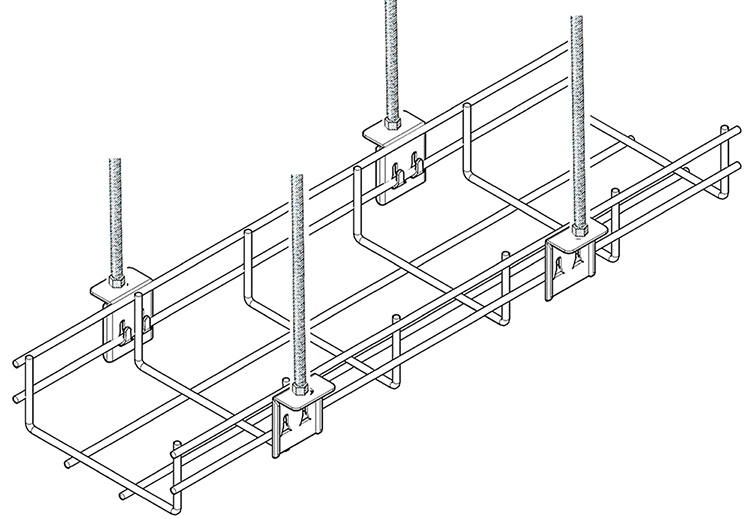

Side Suspension Brackets for Basket

Simple and economical side suspension brackets for cable basket.

Side Suspension Brackets

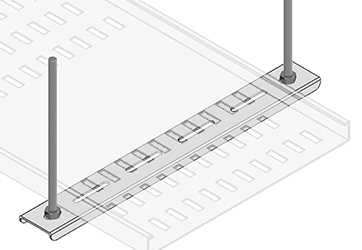

Trapeze brackets

Trapeze Brackets

New Product

Trapeze Brackets are a ready made method of supporting tray and basket from ceilings and girders etc.
Sizes available up to 600mm and will work with most tray and cable basket.

Trapeze brackets

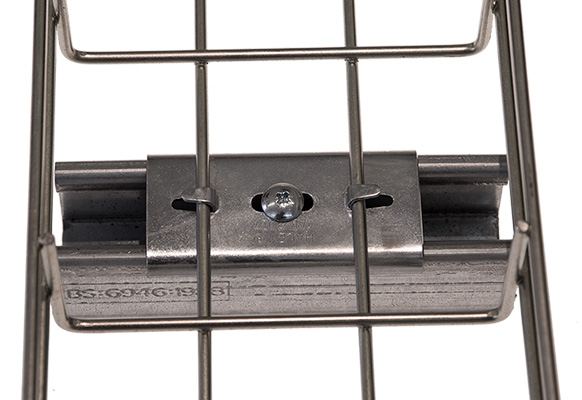

Basket securing clip for strut

Twist-in Strut Clip for basket

Twist in clip for securing basket to strut. Comes alone as a basic twist-in clip or pre-assembled ready for use.

Twist-in Clip for strut
Basket adapter clips

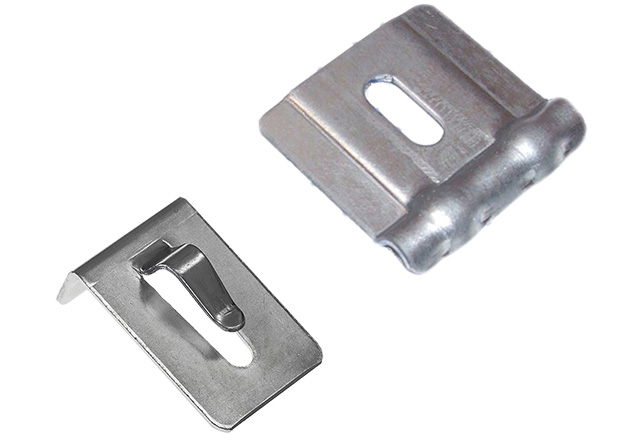

Basket Adaptor Clips

Designed to clamp basket to brackets.

Two clips for fixing basket to Haley brackets.


Basket Adaptor Clips

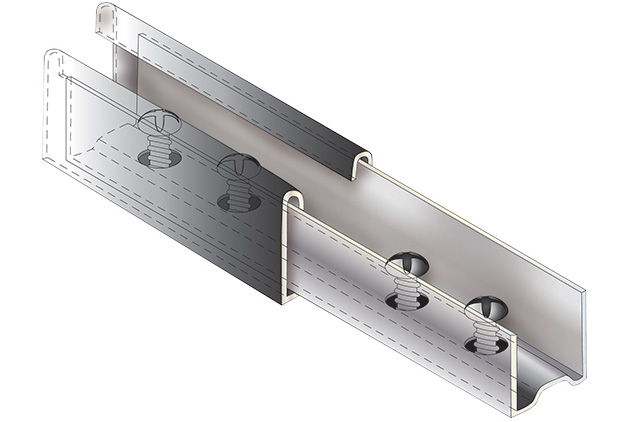

Internal connectors for strut

Internal Connectors for Strut

Trapeze Brackets are a ready made method of supporting tray and basket from ceilings and girders etc.
Sizes available up to 600mm and will work with most tray and cable basket.

Strut Internal Connectors

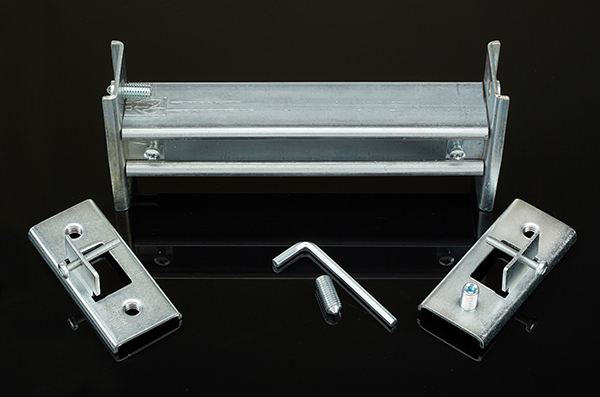

Internal column clamp

Internal Column Clamps

Haley Internal Column Clamp is an effective method of clamping a length of strut to the inside flanges of a universal column(UC). Used for fixing vertival lengths of tray or basket inside the flanges.
Designed to works with up to 400mm inernal dimensions.

Internal column clamp

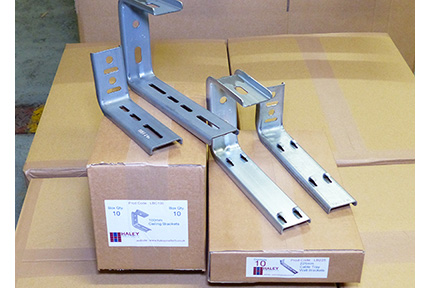

LBC and LB bracket box packaging.

Convenient Packaging.

General Information about us

Overview

Manufacturing

Since early 1980's – Present

Here at Haley Products Ltd we have been manufacturing and supplying our brackets since 1986 from our own premises in Stoke on Trent, Staffordshire. We deliver nationally using next day Carriers. Please contact us for more details. We manufacture for stock and to special order. All our brackets are manufactured in the UK.

Deliveries

delivery van

All orders placed by 12 o'clock are dispatched the same day (subject to stock availability). We use a next day delivery service for all parcels. Larger orders are dispatched on a pallet.
Orders placed after this time will be dispatched the next working day.

About us and who we are

Union Flag.

Made in Britain.

Haley Products Ltd is a family run business, established in 1986, specialising in designing, manufacturing(in Britain) and supplying cable management support brackets in the U.K.
Our wide range of brackets, many with unique time saving features, have been designed to simplify installation. Whether fixing to walls, ceilings, under raised floors or suspending on threaded rod from ceilings or RSJ’s, we have the bracket for the electrician.

Our core aims

  • Design and manufacture cable tray and basket support brackets that the contractor will want to use.
  • Provide good value products that are simple to use.
  • Supply through stockists and electrical wholesalers.
  • Manufacture for stock. Helping us to provides quick deliveries and help to reduces or eliminates down time.
  • Manufacture all our brackets in the UK.
