LBC Ceiling Brackets

  • Ideal for lightweight support of cable tray and basket
    parallel to ceilings in offices, passageways and fire escapes
  • Can be used for some limited suspension appilcations
    (up to 150mm).
  • Designed for side loading of cable into tray, thus saving
    time and effort.
  • Will fit over 41mm wide framing channel(strut).
  • Can be fixed directly to a ceiling using any appropiate
    fixing method.
  • Elongated M6 clearance slots for easy alignment.
  • A cable basket range is also avialable.
  • Backplates available for fixing to wooden joists.
Size
(Up To)		 Material
Thickness		 No. of
Slots		 Inner
Quantity		 Outer
Quantity		 Product
Code
4"(100mm) 2.0mm 2 10 60 LBC100
6"(150mm) 2.0mm 3 10 40 LBC150
9"(225mm) 2.0mm 4 10 40 LBC150
12"(300mm) 2.0mm 5 10 30 LBC300
18"(450mm) 2.0mm 7 10 N/A LBC450
N.B. For the 450mm bracket, end support is needed.

LCB End Support
Size Description Inner
Qty		 Outer
Qty		 Product
Code
129mm Fixing to strut 10 100 LBCES02Z
137mm Fixing to ceiling 10 100 LBCES13Z
Extra end support,if needed.
N.B. For the 450mm bracket, end support is needed.
Fixing Kit
For
Size		 Information Inner
Quantity		 Outer
Quantity		 Product
Code
Fits all Fixes tray to bracket 10kits 100kits FK100

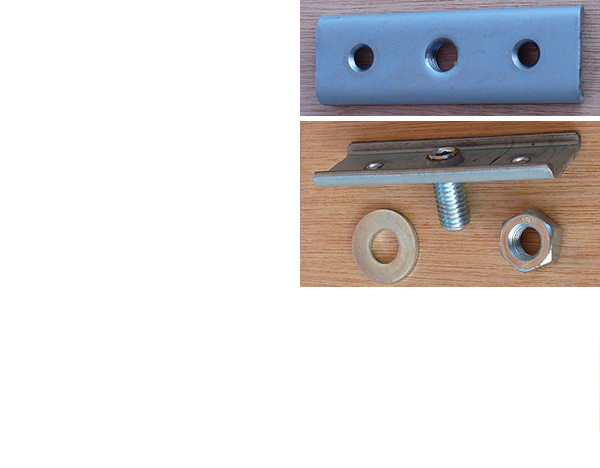

backplate range
backplates
Description Finish Pk. Qty. Code
Plain backplate
 		 pre-galv
 		 50
 		 HBP10FM

Backplate with
M10x12 X-set and washer
 		 pre-galv

 		 25

 		 HBP10XB


Backplate with
M10 stud and washer
  		pre-galv

 		 25

 		 HBP10ST

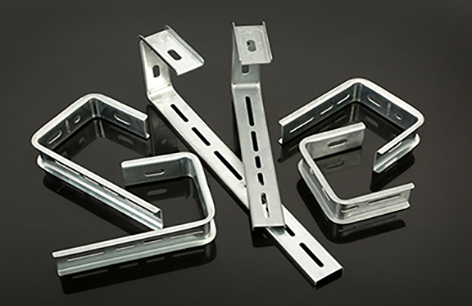

LBC cable tray ceiling brackets image

Bracket sizes

For lightweight support of cable tray and basket parallel to ceilings.
Can be used for some limited suspension applications (up to 150mm).
Designed for side loading cable into tray saving time and effort.

When using the 450mm bracket an extra support should be used at the free end of the bracket for extra support.

LBC and LB bracket box packaging.

LBC and LC packaging

Haley LBC brackets are packed in multiples of 10. This allows them to be stored, transported, sold and used easily.

All packaging material is either recyclable or biodegradable.

LBC brackets fixed to strut

LBC Strut Fixing

Will fit over 41mm wide channel (strut) using a standard bolt and channel nut(zebedee).

Can also be fitted directly to a ceiling using any appropriate fixing method.

LBC fixing to timber joists

Fixing to Timber Joists

Fixing to wooden joists is made a lot easier with our HBP backplate range.
The problem with wooden joists is the need to use woodscrews. The restricted height between the two parrallel faces makes it awkward to use a screwdriver.
With the HBP range the plate is first, fixed to the wooden joist using your preferred woodscrew. The bracket is then fixed using the nut or bolt that is supplied with each backplate. You can also buy a plain backplate and use your own bolt.

LBC fixing to ceilings

Fixing to Ceilings

When fixing to ceiling a packing piece.
With the LBBPC10 will help prevent any distortion when excess tightening force is applied.

Any suitable fixing method of the installers choice can be used

Image is for illustration purposes only, and is not to scale.

LBC end support

LBC End Support

LBCEL02Z end support. The top flange is clamped under top studding nut and bottom flange is secured under the tray bolt nut.
The LBCEL02Z adds extra support for the longer lengths of LBC brackets, if needed. When using the 450mm bracket an extra support should be used at the free end of the bracket.

Tray fixing installation using fk100 fixing kit

Tray Fixing Kit

When working overhead the FK001 removes the need to use a screwdriver to hold the bolt securely while tightening up the nut. N.B. no tools needed to secure the tray.

Features of LBC Brackets

Union Flag.

Made in Britain.

Brackets made for the electrician.

Key features:

  • Designed for side loading.
  • Single rod suspension.
  • Will fit over strut.
  • Boxed in 10's for all round convenience.
  • Manufactured in the United Kingdom.
