Haley Brackets
Cable Tray Support Manufacturers + Designers
As a UK manufacturer, we specialize in supplying products to support cable tray + basket installations. As an company, we focus on making products the electrician would want to use. In gereral, easy to use, comprehensive range, convenient packaging (mostly in multiples of 10 using recyclable materials), quick deliveries with low order values.
We manufacture for stock, supply through distributors and electrical wholesalers, using next day delivery.
Our contact details are at the bottom of this page.

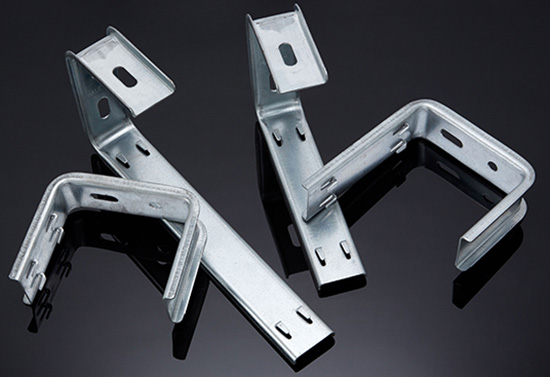

LBCBA Ceiling Brackets for Basket
| Size (Up To) |
Material Thickness |
Finish |
Inner Qty. |
Outer Qty. |
Product Code |
|---|---|---|---|---|---|
| ! 100mm | 2.0mm | Pre-Galv. | 10 | 60 | LBCBA100 | ! 150mm | 2.0mm | Pre-Galv. | 10 | 4 50 | LBCBA150PE | * 150mm | 2.0mm | Pre-Galv. | 10 | 40 | LBCBA150ST |
| ! 200mm | 2.0mm | Pre-Galv. | 10 | 40 | LBCBA200 |
| * 200mm | 2.0mm | Pre-Galv. | 10 | 40 | LBCBA213 |
| ! 300mm | 2.0mm | Pre-Galv. | 10 | 30 | LBCBA300 |
| *300mm | 2.0mm | Pre-Galv. | 10 | 30 | LBCBA315 |
| ! work with basket that have even number of wire. | |||||
| * work with basket that has a centre wire i.e. an odd number. | |||||
| Size | Description | Inner Qty |
Outer Qty |
Product Code |
|---|---|---|---|---|
| 129mm | Fixing to strut | 10 | 100 | LBCES02Z |
| 137mm | Fixing to ceiling | 10 | 100 | LBCES13Z |
| Extra end support,if needed.N.B. For the 450mm bracket, end support is needed. | ||||
Bracket sizes
For lightweight support of cable tray and basket parallel to ceilings.Can be used for some limited suspension applications (up to 150mm).Designed for side loading cable into tray saving time and effort.
When using the 450mm bracket an extra support should be used at the free end of the bracket for extra support.
N.B. When using 150mm basket and above, care has to be taken when choosing your brackets. Some manufacturers make their larger basket using even number of wires, and others have an odd wire number, with a centre wire.
To overcome this issue Haley Products manufactures sepatate brackets for sizes of 150mm and above. N.B. When ordering your basket and brackets.
LBCBA and LBBA packaging
Haley LBCBA brackets are packed in multiples of 10. This allows them to be stored, transported, sold and used easily.
All packaging material is either recyclable or biodegradable.
LBC Strut Fixing
Will fit over 41mm wide channel (strut) using a standard bolt and channel nut(zebedee).
Can also be fitted directly to a ceiling using any appropriate fixing method.
LBCBA Joint Application
The weakest point in basket installation is the joint. Double row of tags means basket could be loined at the bracket.
This method, plus using appropiate connectors gives extra support at the joint.
Fixing to Timber Joists
Fixing to wooden joists is made a lot easier with our HBP backplate range.
The problem with wooden joists is the need to use woodscrews. The restricted height between the two parrallel faces makes it awkward to use a screwdriver.
With the HBP range the plate is first, fixed to the wooden joist using your preferred woodscrew. The bracket is then fixed using the nut or bolt that is supplied with each backplate. You can also buy a plain backplate and use your own bolt.
Fixing to Ceilings
When fixing to ceiling a packing piece.
With the LBBPC10 will help prevent any distortion when excess tightening force is applied.
Any suitable fixing method of the installers choice can be used
Image is for illustration purposes only, and is not to scale.
LBC End Support
LBCEL02Z end support. The top flange is clamped under top studding nut and bottom flange is secured under the tray bolt nut.The LBCEL02Z adds extra support for the longer lengths of LBC brackets, if needed. When using the 450mm bracket an extra support should be used at the free end of the bracket.
Features of LBC Brackets
Made in Britain.
Brackets made for the electrician.
Key features:
- Designed for side loading.
- Single rod suspension.
- Will fit over strut.
- Boxed in 10's for all round convenience.
- Manufactured in the United Kingdom.
